Robot Vision

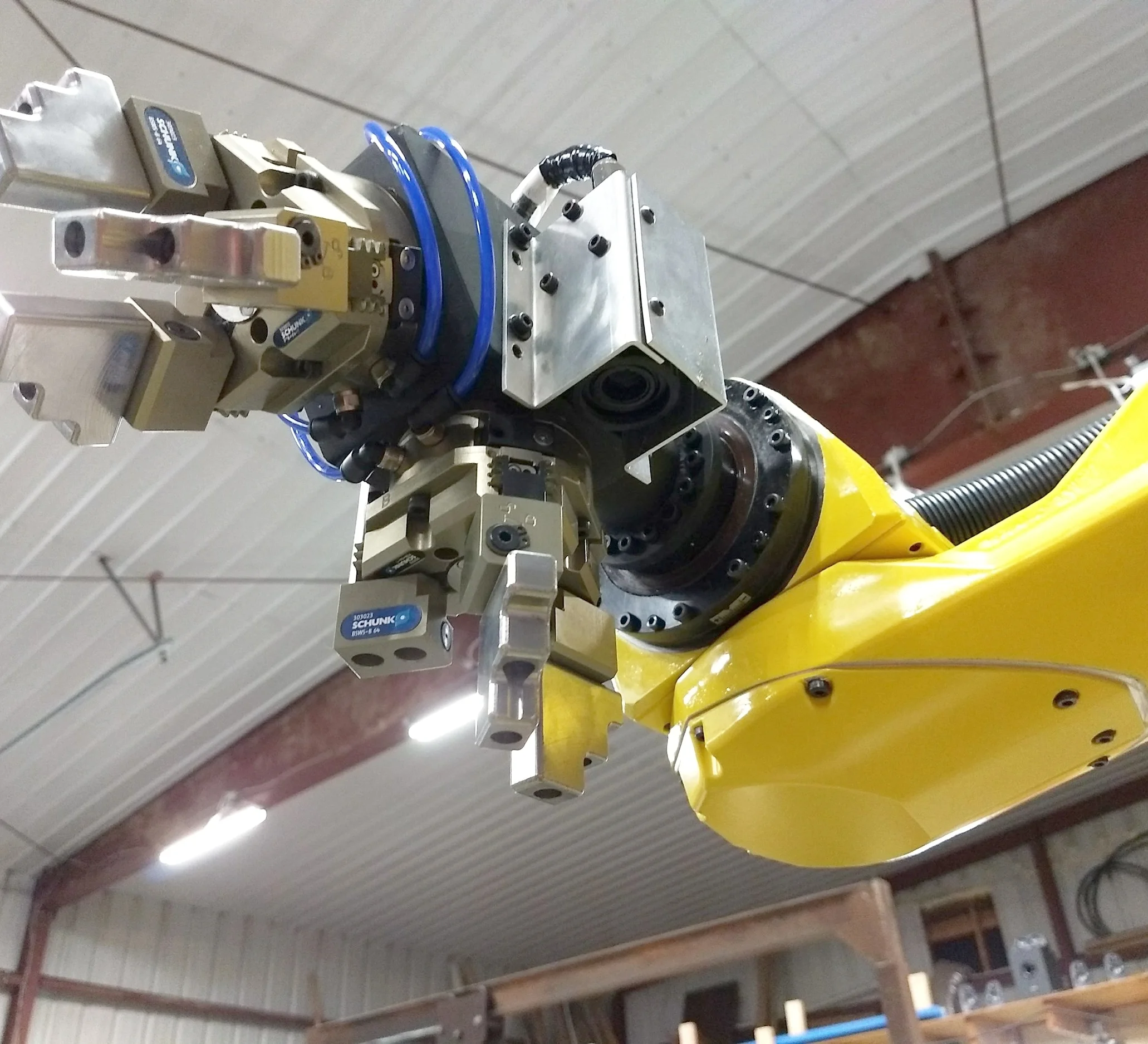

We commonly use 2D vision in our robot cells to quickly adapt to changes in part presentation.  Cameras are mounted in one of two locations, either stationary above the object in question, or on the end of the robot arm.

Typically these cameras are utilized to adjust for location of a specific feature of a part that is critical in the next step.  For example, we can use robot vision to accurately find the center of a cylindrical part.  Which can remove an additional step of placing the part in a jig to locate properly.



Additionally, we can use the same camera to perform necessary quality checks, including bar-code scanning, image or color presence, and dimensional measurements.



how IT workS

Fanuc 2D iRVision is calibrated via a grid system that locates the camera in relation to the robot world zero point.  With this information, we can accurately locate and dimension parts to pick, sort, and quality check as the application requires.

  Fanuc iR Vision

Fanuc iR Vision

  VISION TEACHING EXAMPLE

VISION TEACHING EXAMPLE


Why am i seeing this?

If you are seeing this by mistake, you've stumbled into the quoting portion of our website.  When we send you a proposal we find it best to have links to explanation pages for each item we are quoting.

CONTACT US if you have any questions
