Control Panel

Our cells feature a custom control system built in-house and designed project specific.

Whenever possible we prefer to use touchscreen HMI's in the place of switches and dials.  HMI's allow us to program operator instructions and visual indicators for what is happening in the cell.  It also allows us to expand the cell at a future date without having to totally remake a control panel.

Basic functions

Our panels control the following basic functions, as well as ancillary functions depending on the project.

o    Allow the operator to enter variables and data needed to execute programs

o    Start cycle, Stop cycle, and basic control functions

o    Warnings and error display

o    Safety warnings, and the ability to restart the cell after a safety breach.


Screen Size

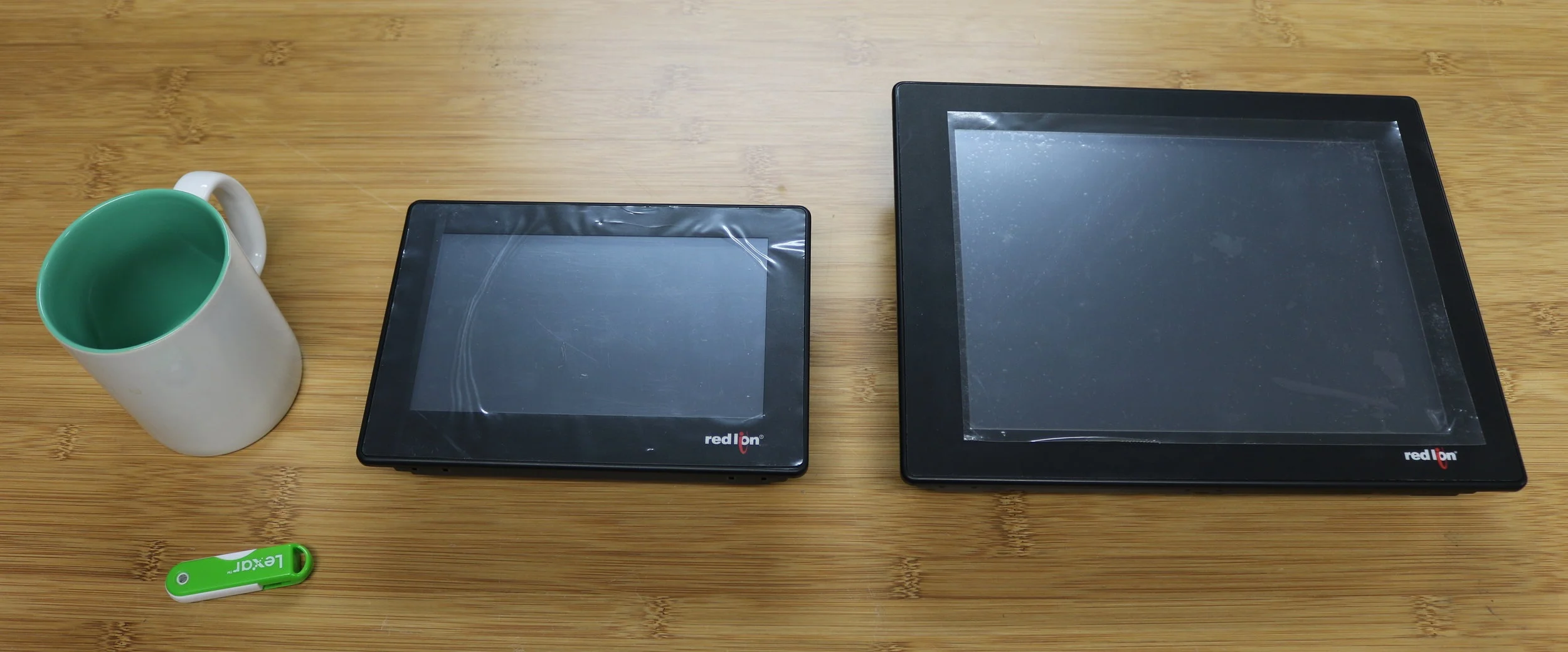

We have a range of options when it comes to HMI’s, varying screen sizes and screen capabilities. Our standard screen size for most applications is 7inch or 10inch, shown for comparison below.


We have upgrade options available if you’d like have a larger operator screen, up to 15inches. We also have data logging packages and web server setups where anyone on a secure network can remotely monitor the cells operation and production. Ask us for more details.
